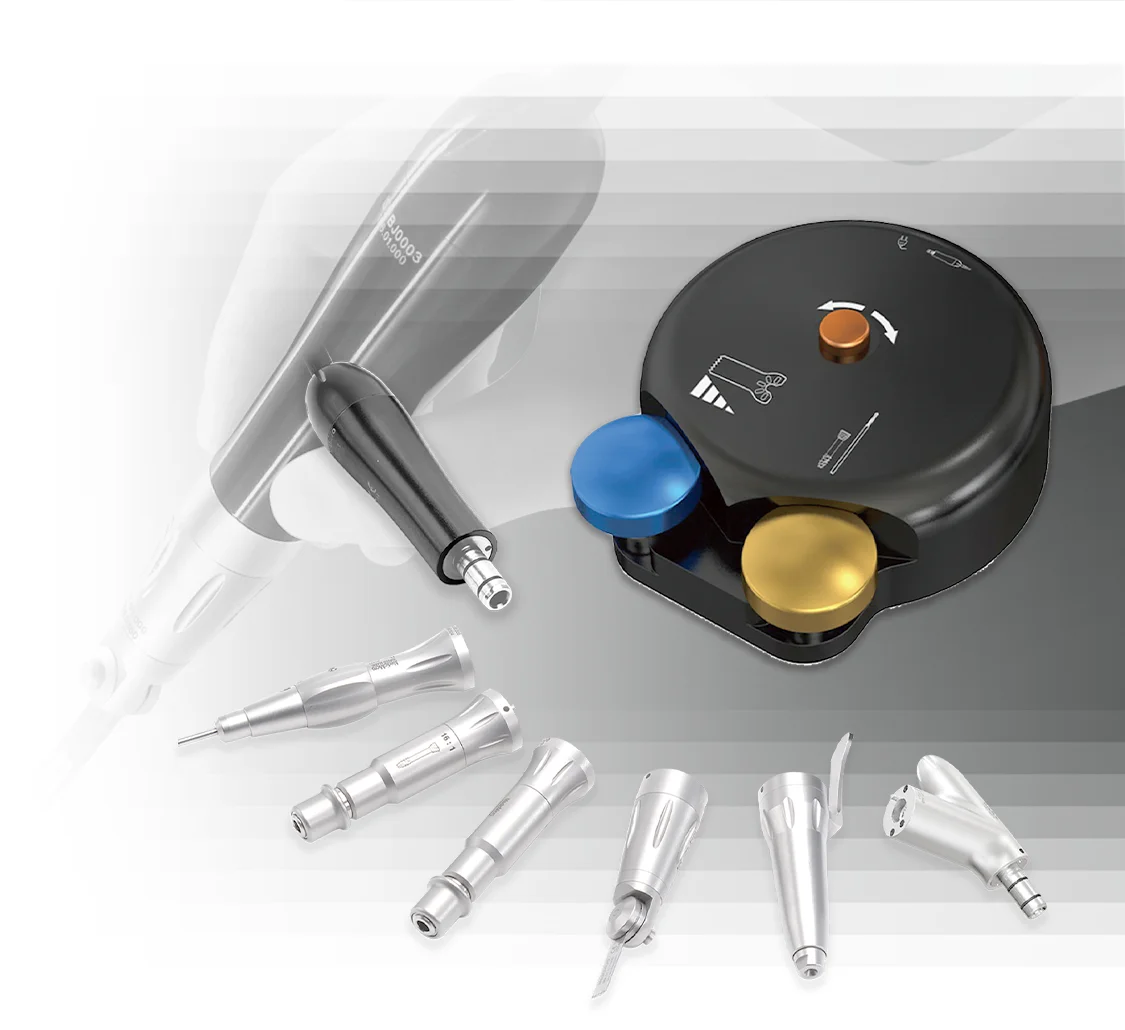

The Bojin System 3500 Small Bone Micro Power System is specifically engineered for a wide range of small bone orthopedic procedures, especially those involving the foot and ankle. Its versatility makes it an essential instrument for podiatric surgeons, orthopedic specialists, and trauma centers.
One of its primary applications lies in complex reconstructive foot surgeries, where controlled high-speed drilling and sawing are crucial for precision. The system supports procedures such as osteotomies, arthrodesis, fracture fixation, bunion correction, and metatarsal reconstruction. With its high rotational speeds and adaptable accessories, surgeons can efficiently perform bone shaping, drilling, and wire insertion under demanding surgical conditions.
The Bojin System 3500 Small Bone Micro Power System is also ideal for ankle-related surgeries, including ligament reconstruction, trauma repair, and small-joint fusion. The system’s compact structure and ergonomic design enhance visibility and mobility in tight anatomical spaces. This ensures minimal disruption to adjacent structures, making it highly suitable for minimally invasive surgical approaches.
Additionally, the system’s AO bone drill attachments make it compatible with numerous orthopedic fixation techniques involving screws, wires, and small implants. Whether in elective procedures or emergency trauma settings, the Bojin System 3500 Small Bone Micro Power System provides dependable support for surgeons seeking accuracy and control.
Features & Advantages
The Bojin System 3500 Small Bone Micro Power System is equipped with multiple technical and structural features that support its superior performance.
1. High-Speed Performance
With speeds up to 15,000 R/min, the system delivers powerful and efficient cutting, drilling, and shaping, meeting the surgical requirements of small bone procedures.
2. Multi-Attachment Compatibility

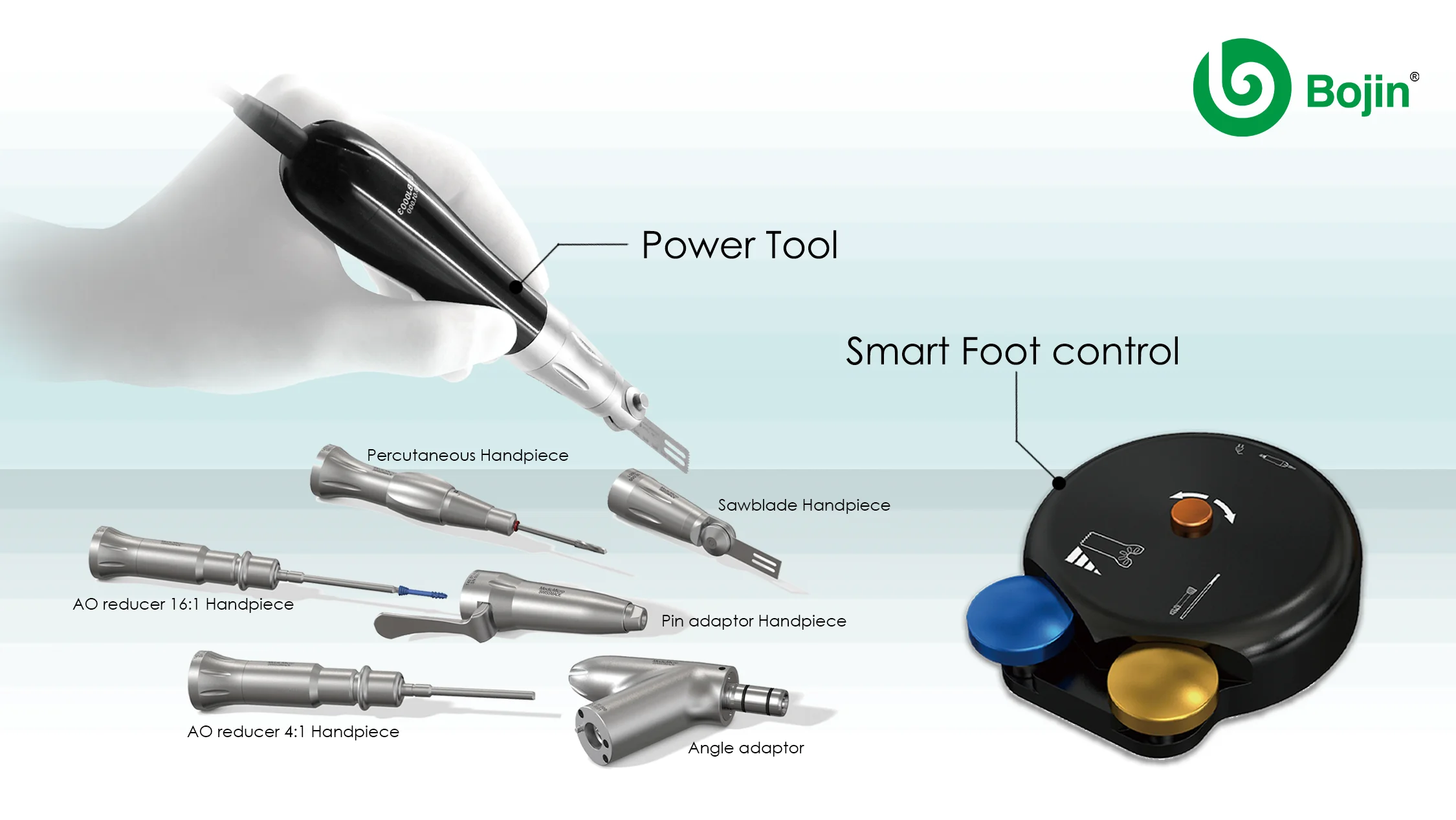

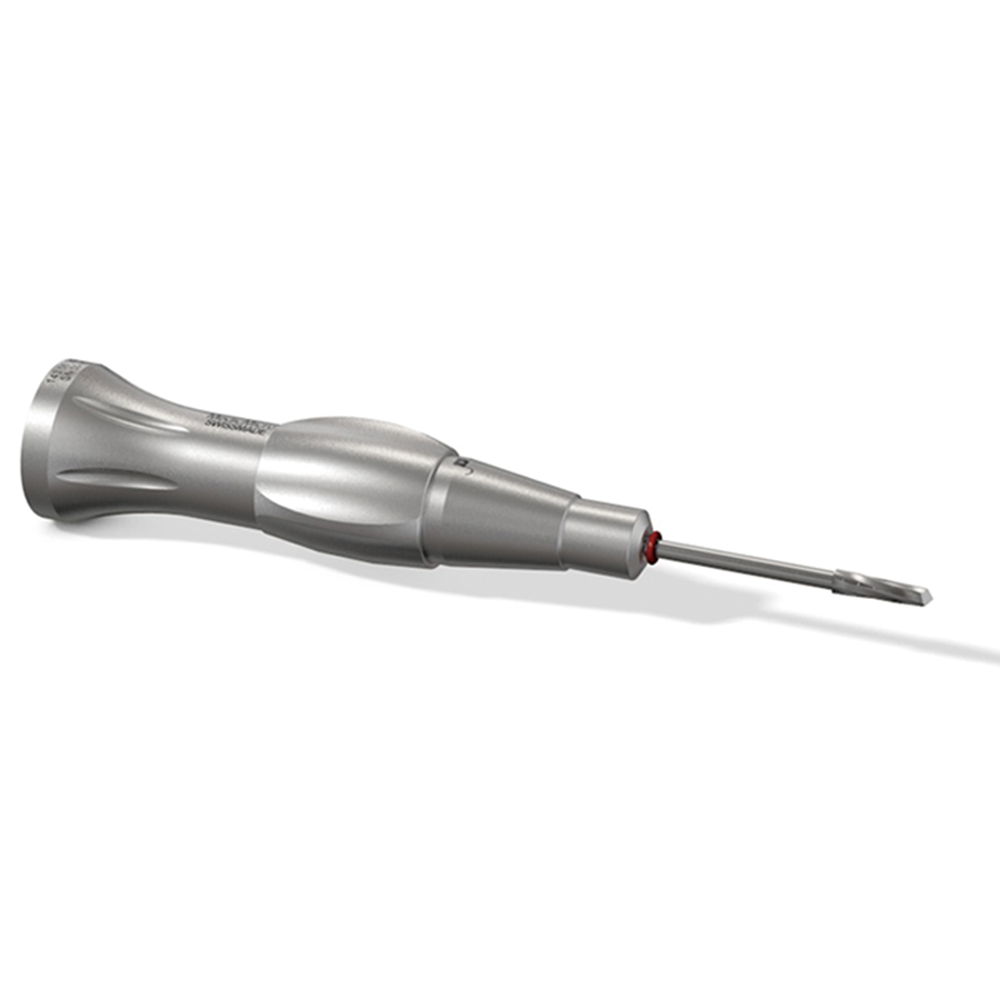

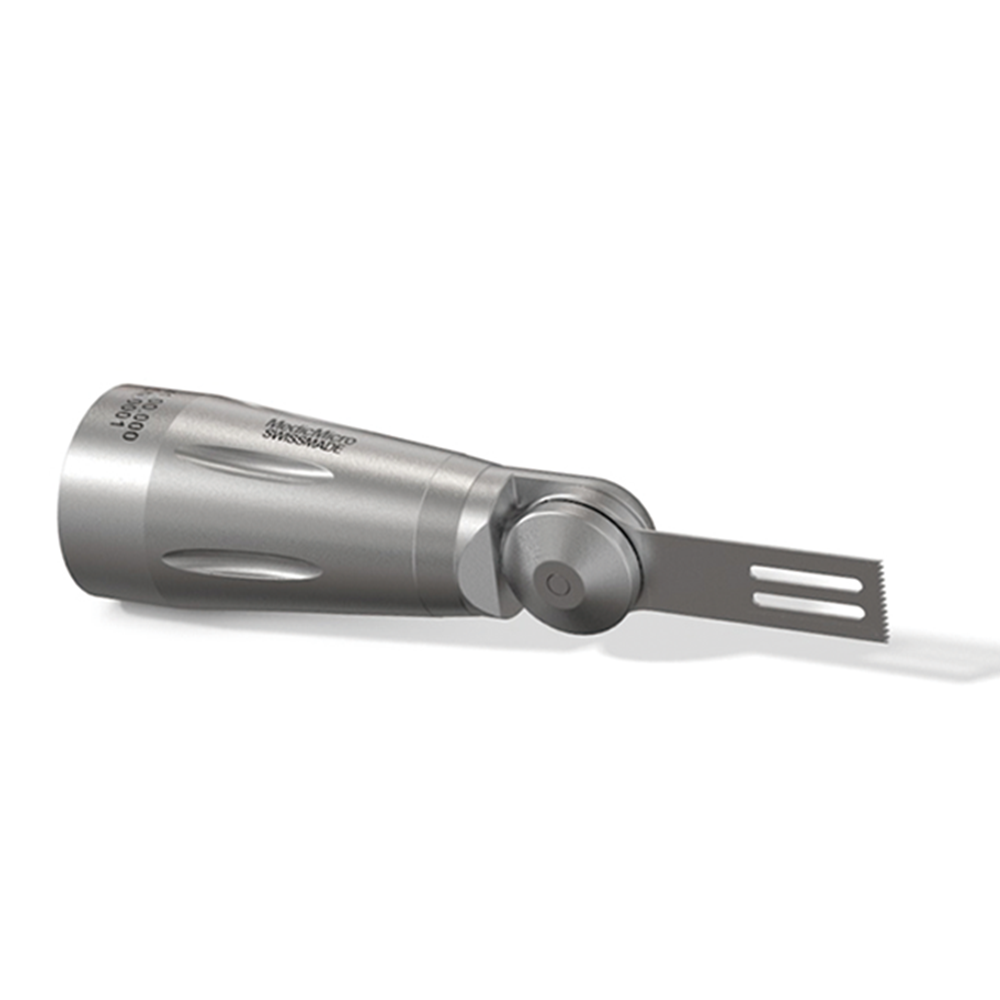

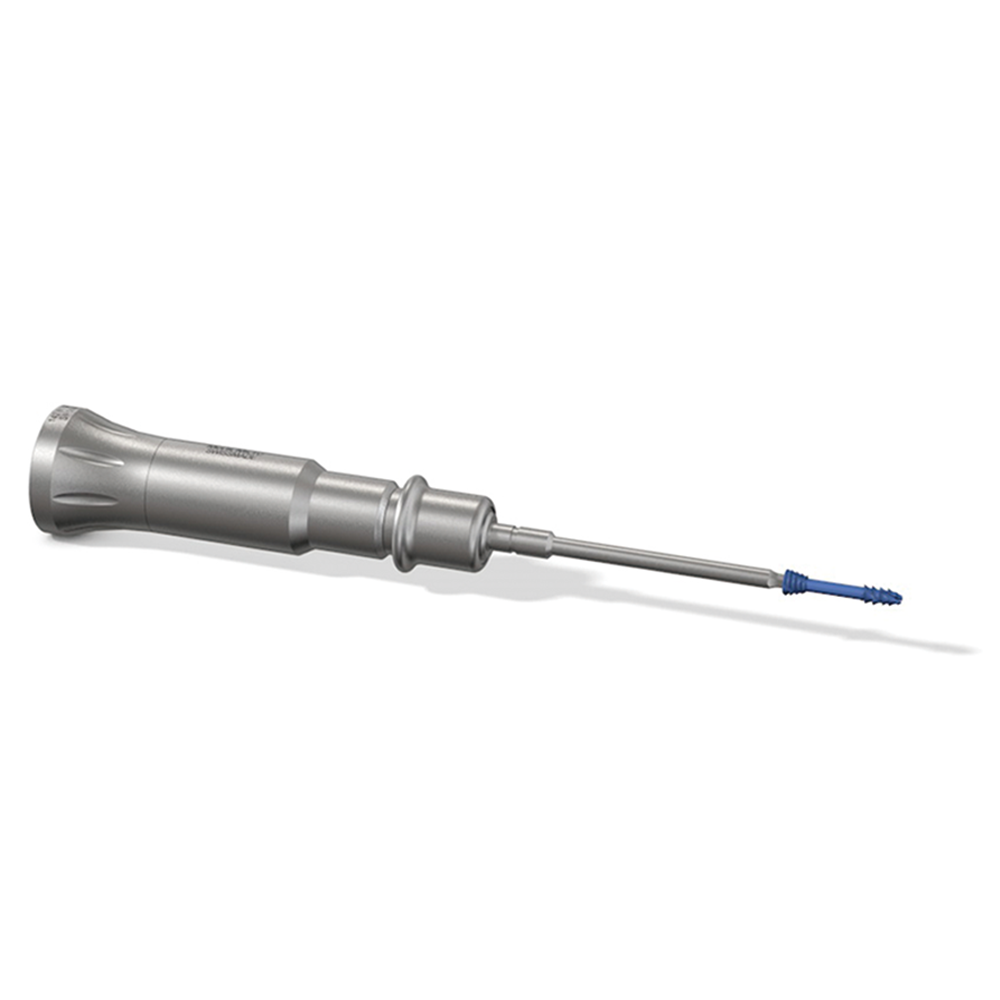

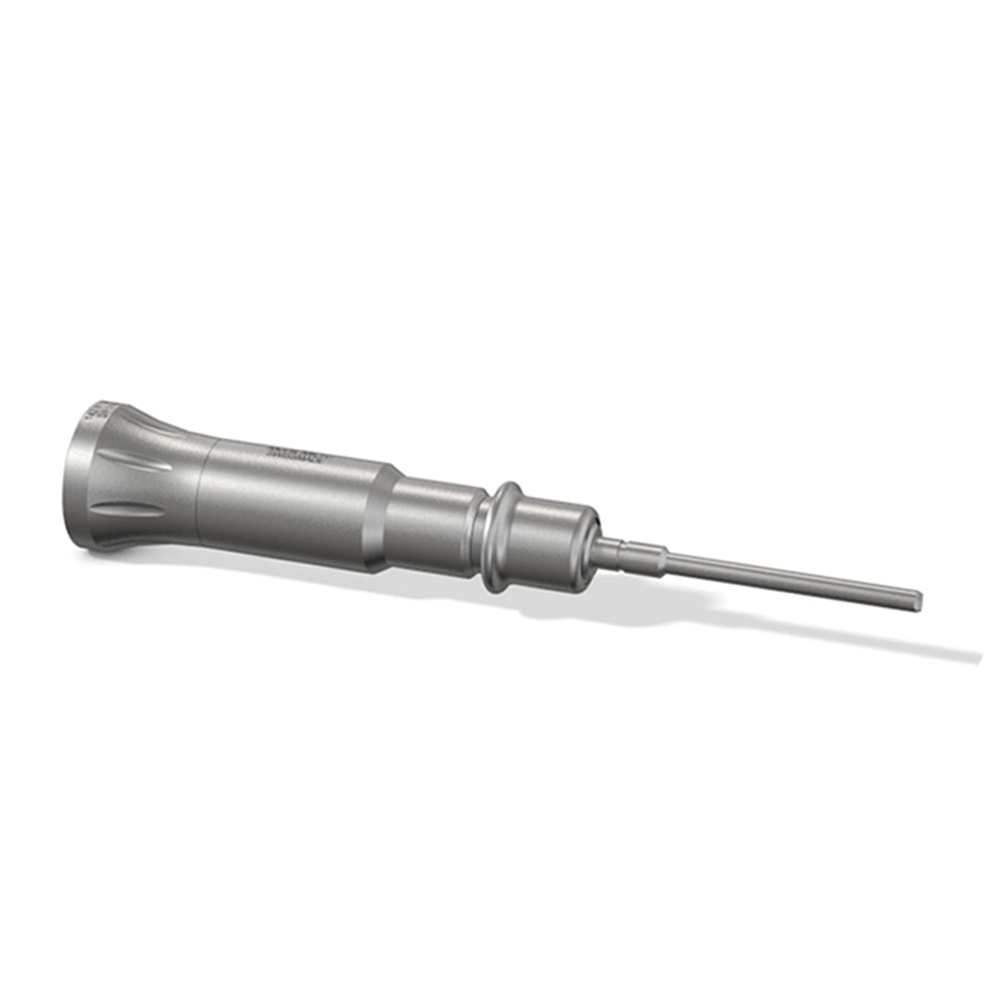

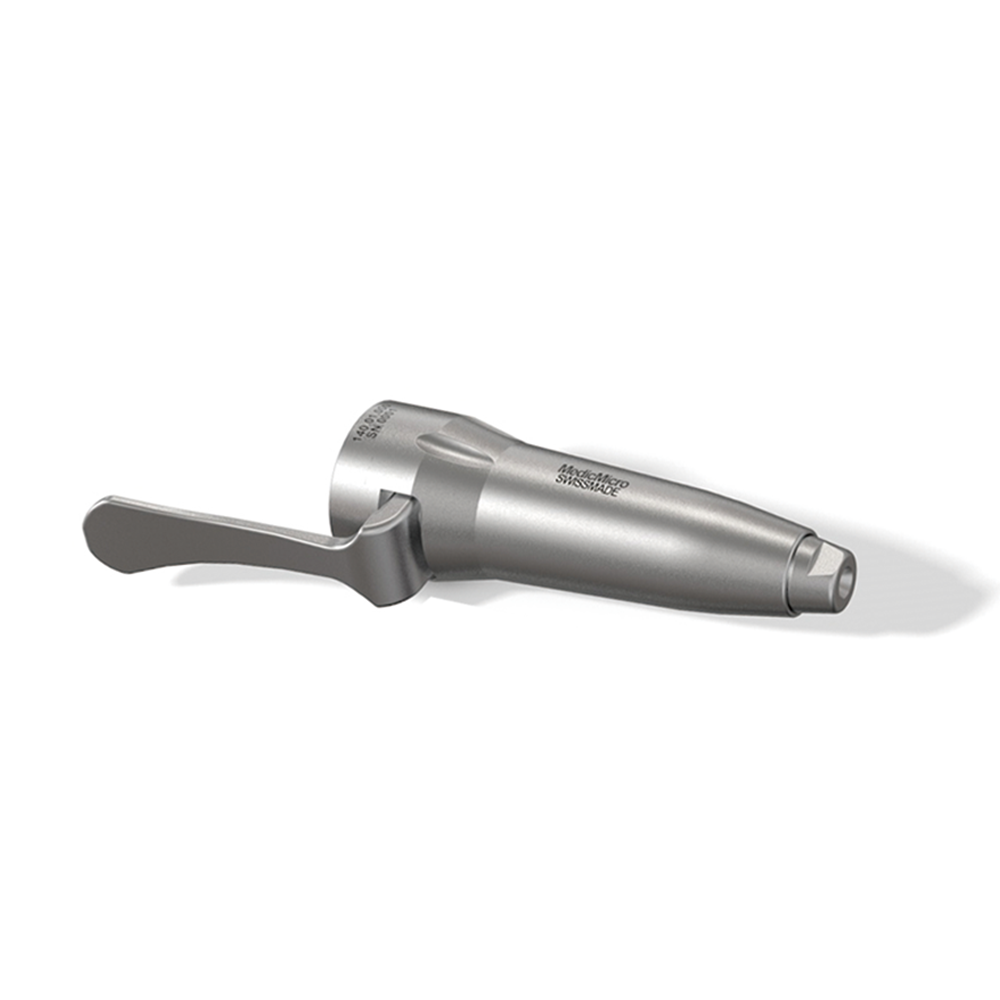

The system supports straight attachments, sagittal saw components, K-wire drivers, and AO bone drills. This multi-purpose capability allows surgeons to switch between functions without needing additional equipment.
3. Optimized Torque Output
The torque levels—0.12 N·m for straight and 4:1 attachments and 0.45 N·m for 16:1 attachments—help deliver controlled force for delicate bone work without compromising structural integrity.
4. Ergonomic Surgical Control
Designed to reduce fatigue and enhance grip stability, the compact and lightweight structure supports precise movements during complex procedures.
5. Reliable Battery Performance
The 110V–220V battery voltage ensures strong and consistent operation, eliminating downtime and improving workflow efficiency.
6. Proven Durability and Safety
Manufactured under strict quality control standards, the system is built to meet global expectations of safety, performance, and reliability.
Specification
Model Number |
BJ3500 |
Warranty |
2 years |
Place of Origin |
Shanghai |
Battery voltage V |
110V-220V |
Power output power |
30W-60W |
Rotation speed（Straight attachment） |
8000-15000 R/min |
Rotation speed（Sagittal saw） |
8000-15000 C/min |
Rotation speed rpm/cpm（AO bone drill(4:1)） |
2000-3750 R/min |
Rotation speed rpm/cpm（AO bone drill(16:1)） |
500-937 R/min |
Rotation speed（K wire driver attachment） |
8000-15000 R/min |
Torque N.m（Straight attachment） |
0.12 |
Torque N.m（AO bone drill(4:1)） |
0.12 |
Torque Nm（AO bone drill(16:1)） |
0.45 |
Why Choose Bojin Power Console System 3500
The Bojin System 3500 Small Bone Micro Power System is backed by decades of engineering expertise from Bojin Medical, a company known for its innovation in orthopedic power devices. With comprehensive certifications including ISO9001, ISO13485, CE, CCC, and FDA registration, this system provides confidence to clinicians worldwide. Its combination of high-speed performance, versatility, ergonomic design, and strong durability makes it an excellent long-term investment for medical facilities seeking enhanced efficiency and precision in small bone surgical procedures.
Quality & Certification
All Bojin Medical products, including the Bojin Power Console System 3500, are manufactured under strict international standards. The company holds certifications such as ISO9001, ISO13485, CE, and FDA. Each unit undergoes rigorous inspection and performance testing before delivery, ensuring complete compliance with global medical device regulations.
This commitment to quality guarantees surgeons a reliable and safe power system they can trust in critical procedures.
EN

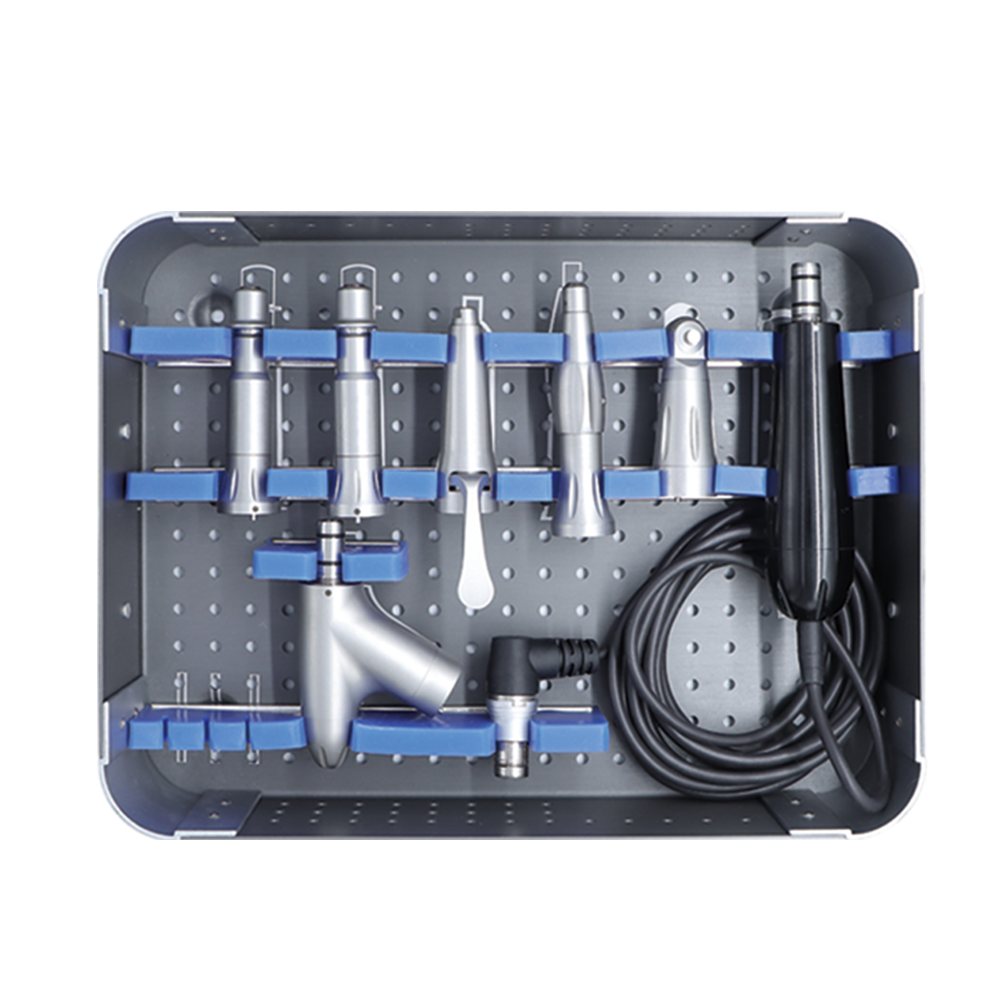

Standard Configuration
